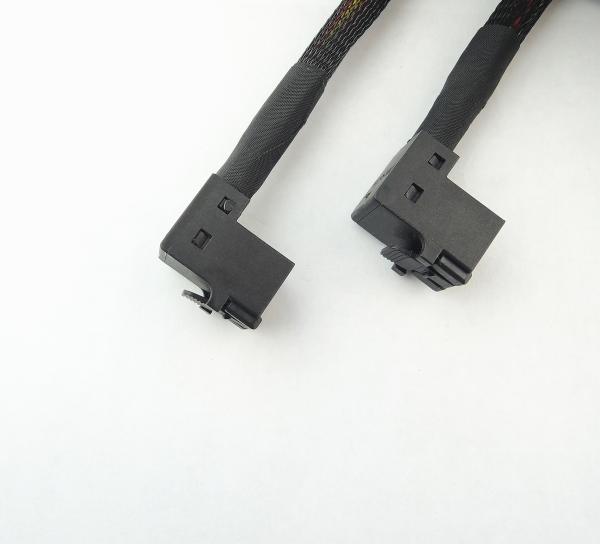

RoHS Internal Copper 36P Elbow Supermicro SAS Cable

RoHS Internal Copper 36P Elbow Supermicro SAS Cable

Supermicro SAS MiniSAS HD 12G 4X SFF-8643 INTERNAL COPPER CABLE

SFF-8643
Series: HD Mini SAS
· Cable Length:1.0 Meters
· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM
· Plating: Au 30u"
· Color: Cable Silver, Overmold Black
· Environmental Compliance: RoHS

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

· Data/Communications

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

Product Name	1m (3.3ft) MiniSAS HD 12G 4X SFF-8643 INTERNAL COPPER CABLE
Wire AWG	30AWG
Cable Length	1m(3.3ft)
Connector Type	HD MiniSAS SFF-8643
Max Data Rate	12Gbps
Protocols	SFF-8643
Color	Black

1. A new generation of SAS storage interface and a new mini-sas HD product portfolio.The product meets the signal bandwidth requirements of 6Gb/s to 12Gb/s or the corresponding SAS 2.1

And the proposed SAS 3.0 industry standard signal specification.The system also provides greater port density than the previous SAS interconnect system, which had a port to port linear port density of just 19.01 mm ,Linear circuit board port density (port to port 11 mm).

2. The mini-sas HD product fully conforms to the industry specification of sff-8643 (internal application) and sff-8644 (external application).Types of internal and external panel connections available Includes 4X, 8x configurations to provide end customers with choice and design flexibility.
