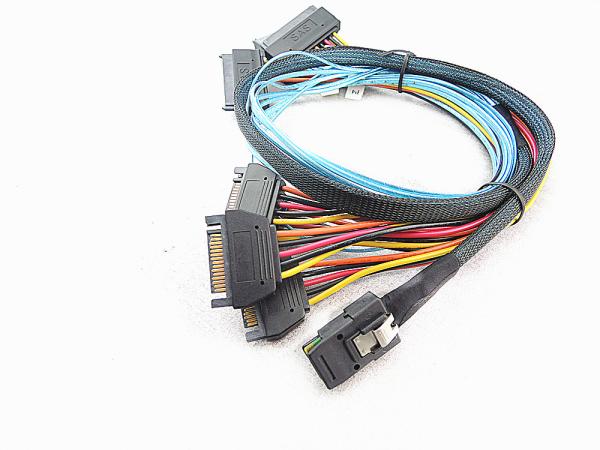

Internal Serial Attached SCSI 0.5 Meter SAS Splitter Cable

HD MiniSAS 6G 36P 4X SFF-8087 TO 4*SAS29P SFF-8482 INTERNAL COPPER CABLE
Product Features
· Transmission rate 6Gbps
· Meet SAS2.1 specification
· Low power
· Differential impedance 100ohms
· Self lock design
Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications
SFF-8087
Series: Mini SAS
· Cable Length:0.5 Meters
· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM
· Plating: Au 30u"
· Color: Cable Silver, Overmold Black
· Environmental Compliance: RoHS
Signal Integrity
. Mated Connector Impedance: 100 ohm±15%
. Cable Absolute Impedance: 100 ohm±10%
. Cable Pair Matching: ±5 ohm
. Common Mode Impedance: 25 to 40 ohms
. Insertion loss: -6dB maximum up to 4.5Ghz;
11dB maximum up to 9Ghz.
. Crosstalk: -35 dB up to 6Ghz
Mini SAS 6G 4X INTERNALCOPPER CABLE 36P STR TO 4x SFF-8482+4*SATA 15P Product Description SAS SFF-8087 Connector Internal MiniSAS (SFF-8087/SFF-8482) Cable Length 0.5M Signal Wire Size 30AWG, Tinned copper Impedance 100 OHM Plating Au 30u' Cable Color Black Applications servers,Storage rack,Workstations
INTERNAL MINI SAS DATA + POWER CABLE connects a SAS controller to 4 separate SAS HDD drives; Forward fanout cable has 1x latching SFF 8643 Mini SAS host connector and 4x discrete SAS target hard drive SFF 8482 connectors.
SCSI CONTROLLER TO SAS cable provides internal computer connectivity between a Serial Attached SCSI controller card host and direct attached storage hard drives; 36 pin SFF-8643 Host connector and 4x SAS 29 pin SFF-8482 data and power Target drive connectors.
