Servers 6Gbps Transmission Rate 7pin SAS Splitter Cable

Servers 6Gbps Transmission Rate 7pin SAS Splitter Cable

MiniSAS HD 6G 4X SFF-8643 TO 4*SATA 7P INTERNAL COPPER CABLE

Product Features

· Transmission rate 6Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

· Data/Communications

SFF-8643

Series: HD Mini SAS

· Cable Length:1.0 Meters

· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM

· Plating: Au 30u"

· Color: Cable Silver, Overmold Black

· Environmental Compliance: RoHS

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

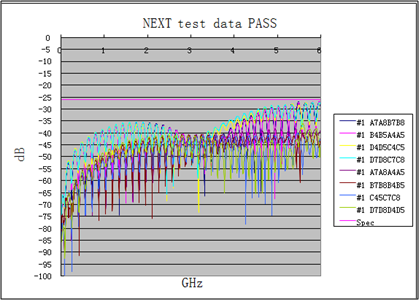

. Crosstalk: -35 dB up to 6Ghz

Item	6G Internal HD MiniSAS 36P TO 4*SATA 7P Cable
Cable Type	HD MiniSAS SFF-8643 to 4*SATA Cable
Connector 1	HD MiniSAS SFF-8643 connector x 1
Connector 2	SATA 7P Female connector x 1
Conductors	Tinned copper, 30AWG
Insulators	PE, natural color
Drain Wire	TC, 30AWG
Data transfer rate	6Gbps
Pin layout	Standard
OEM	Support

1. Mini SAS (SFF-8643) to 4x SATA Cable 7pin,SFF-8643 is host,connect to the motherboard or RAID Controller with Mini SAS ports. 4x7Pin SATA is the target , connect to the hard drives with SATA port.
2. Before you buy this cable , please make sure the Mini SAS (SFF-8643) on your motherboard or RAID Controller. If the Mini SAS (SFF-8643) on your backplane, this cable will not work with them.
3. SFF-8643: the new connector uses less PCB real estate and allows higher port density for internal hosts and devices. Hybrid versions of these new cables will allow for a smooth transition from 6Gb to 12Gb.
4. Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access.
