1 Meter 12G 4X Mini SAS SFF 8644 External Copper Cable

1 Meter 12G 4X Mini SAS SFF 8644 External Copper Cable

MiniSAS HD 12G 4X SFF-8644 EXTERNAL COPPER CABLE

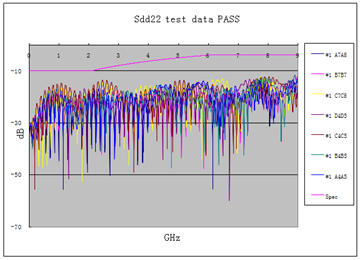

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Self lock design

· EMI radiation suppression design

Applications

· Servers

· Data storage equipment

· Workstation

· SAS port adapter

· Data/Communications

SFF-8644

Series:HD Mini SAS

· Cable Length:1.0-7.0 Meters

· Wire Size:28AWG, Tinned Copper, OD:7.8MM

· Plating: Au 30u"

· Color: Black Cable

· Environmental Compliance: RoHS

12G Passive Direct Attach Copper Cable Straight
Product Description	SAS SFF-8644
Connector	External HD Mini SA (SFF-8665)
Cable Length	5M
Signal Wire Size	30AWG, Tinned Copper
Impedance	100 OHM
Plating	Au 30u'
Cable Color	Black
Applications	servers,Storage rack,Workstations

1. HIGH PERFORMANCE MINI SAS CABLE: This four-channel InfiniBand cable connects two storage devices with external mini-SAS HD SFF-8644 connectors, such as 12G RAID controllers, SATA hard drives, enclosures and JBOD devices.

2. SUPPORTS HIGH SPEED DATA TRANSFER: This SAS HD cable supports data transfer speeds up to 12 Gbps—faster than eSATA, USB 3. 0 and Thunderbolt.

3. BACKWARDS COMPATIBILITY: The backward compatible design of this mini SAS cable enable it to be used with previous SAS versions for sure compatibility with your devices.
