Copper Passive 25Gb Ethernet SFF 8432 SFP28 Dac Cable

Copper Passive 25Gb Ethernet SFF 8432 SFP28 Dac Cable

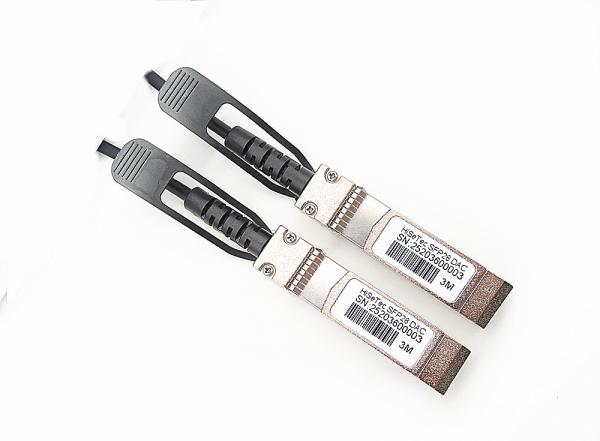

SFP28 Direct Attach Cable, 25Gb Ethernet, Copper Passive, 3m

Product Features

· Meet MSA SFF-8432 specification

· Supports serials data rates up to 25Gbps

· Hot pluggable

· High cost effective to Fiber optics solution

· Low power consumption

· Enhanced EMI suppression

· Differential impedance 100ohm

Applications

· Switches / Routers / HBAs

· Server & Storage Devices

· Data Center Networking

· Enterprise storage

· High Performance Compute

· 25Gbs Ethernet

· Base Station / BBU / RRU

SFF-8432

Series:SFP28

· Cable Length:1.0/2.0/3.0/5.0 Meters

· Wire Size:26AWG, Silver plated copper, OD:4.8MM

· Plating: Au 30u"

· Color: Black Cable

· Environmental Compliance: RoHS

Electrical Characteristics

. Signal Integrity

. Raw Cable Impedance: 100 ohm±10%

. Cable Assembly Impedance: 100 ohm±15%

. Intra-pair Skew: ﹤10ps

. Maximum Insertion Loss:22.48 dB@12.8906 GHz

. Crosstalk:≤-35 dB

25G Passive Direct Attach Copper Cable Straight
Product Description	SAS SFF-8432
Connector	External SFP28 (SFF-8432)
Cable Length	3M
Signal Wire Size	30AWG, Silver-plated copper
Impedance	100 OHM
Plating	Au 30u'
Cable Color	Black
Applications	servers,Storage rack,Workstations

The passive copper cable is a high speed, cost-effective 25Gbp/s Ethernet connectivity solution designed to meet the growing needs for higher bandwidth indata centers.

The passive copper cable contains a single high-speed copper pair, operating at data rates of up to 25 Gb/s. The cables are compliant with IEEE P802.3by Ethernet standard and SFF-8402 SFP28 standard. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system

Unique quality passive copper cable solutions provide efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers .Rigorous production testing ensures the best out-of -the-box installation experience, performance, and durability.
