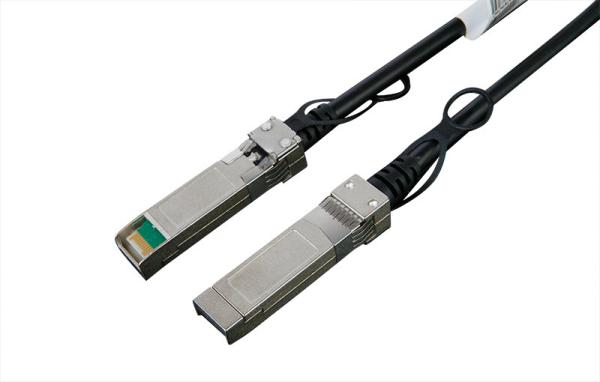

10G DAC SFF 8431 10Gb Passive Direct Attach Cable

Product Categories

Contact Now

Add to Cart

SFP+ 10G DAC SFF 8431 10Gb Gigabit External SAS Cable

10G SFP+ Passive Direct Attach Cable 1m

Applications

Product Features

· Meet MSA SFF-8431 specification
· Supports serials data rates up to 10Gbps
· Hot pluggable
· High cost effective to Fiber optics solution
· Low power consumption
· Enhanced EMI suppression
· Differential impedance 100ohm

SFF-8431

Series:SFP+

· Cable Length:1.0/2.0/3.0/5.0/7.0 Meters
· Wire Size:30AWG/28AWG/26AWG/24AWG,
· Plating: Au 30u"
· Color: Black Cable
· Environmental Compliance: RoHS

Electrical Characteristics

· Raw Cable Impedance: 100 ohm±10%

· Cable Assembly Impedance: 100 ohm±20%

· Intra-pair Skew: ﹤35ps

· Return Loss:﹤-11dB(10Mhz to 4.1Ghz)；

﹤-7dB(4.1Ghz to 11.1Ghz)

· Attenuation: 8.4dB/3M Max.@1.25Ghz

10dB/7M Max.@1.25Ghz

· Crosstalk:﹤-26dB(10Mhz to 6Ghz)；

﹤-20dB(6Ghz to 10Ghz)

SFP+ to SFP+ DAC Twinax cable assembly, Passive, 1.0-meter, AWG30. DAC Length= with 2 SFP+ connectors.
Widely compatible with Cisco, Ubiquiti, Netgear, D-Link, TP-Link, QNAP, Supermicro, Mikrotik, Zyxel, Linksys, Broadcom, NetScout, ZTE etc.
SFP+ cable can connect various devices, such as Fiber Switch, Storage, Router, Server,Firewall, NIC, Media Converter, Date Center and Other fiber optic equipments with SFP+ ports etc.
10G SFP+ DAC cable is a good alternative to fiber over short distances, with low-cost, low power consumption and low latency.
