SFF-8665
Series: QSFP28
· Cable Length:1.0/2.0/3.0/5.0Meters
· Wire Size:26AWG,Silver plated copper,OD:8.0MM
· Plating: Au 30u"
· Color: Black Cable
· Environmental Compliance: RoHS

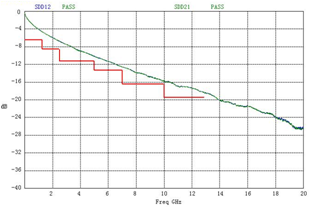

Electrical Characteristics . Raw Cable Impedance: 100 ohm±10% . Cable Assembly Impedance: 100 ohm±15% . Intra-pair Skew: ﹤10ps . Maximum Insertion Loss:22.48 dB@12.8906 GHz . Crosstalk:≤-35 dB Product Name 3m (10ft) 100G QSFP28 to QSFP28 Passive Direct Attach Copper Twinax Cable Wire AWG 26AWG Cable Length 3m(10ft) Connector Type QSFP28 Max Data Rate 100Gbps Protocols SFF-8665, Infiniband ER Color Black

• 100GBASE-CR4 QSFP28 to QSFP28 DAC Direct Attach Copper Twinax Cable, Passive, 3-Meter(10ft), 26AWG.
• 100% Compatible for Cisco QSFP-100G-CU3M (100GBASE-CR4 Passive Copper Cable).
• QSFP28 to QSFP28 copper direct-attach 100GBASE-CR4 cables are suitable for very short links and offer a cost-effective way to establish a 100-Gigabit link between QSFP-100G ports of switches within racks and across adjacent racks.
• In 10Gtek's Signal Integrity Lab, we 100% passed TDR & VNA tested. And each DAC Cable is individually tested on switches before delivery.
