5.0 Meters SFF 8088 26Pin External SAS Cable For Server

5.0 Meters SFF 8088 26Pin External SAS Cable For Server

MiniSAS 12G 26P EXTERNAL COPPER CABLE

Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications

Electrical Character :

. 100% Open &Short Testing

. Withstanding Voltage: DC 100V 0.01Sec;

. Insulation Resistance: 5M Ohm (Min)

. Conductive Resistance: 2 Ohm (Max)

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

· EMI radiation suppression design

SFF-SFF-8088

Series: Mini SAS

· Cable Length:5.0 Meters

· Wire Size:28AWG,Tinned Copper,OD:7.8MM

· Plating: Au 30u"

· Color: Black Cable

· Environmental Compliance: RoHS

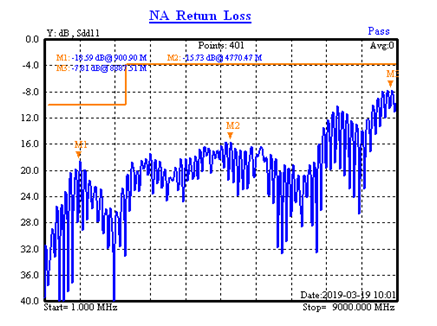

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss:11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

12G Passive Direct Attach Copper Cable Straight
Product Description	SAS SFF-8088
Connector	External Mini SAS (SFF-8088)
Cable Length	5M
Signal Wire Size	26AWG, Tinned Copper
Impedance	100 OHM
Plating	Au 30u'
Cable Color	Black
Applications	servers,Storage rack,Workstations

SFF-8088 interface is mainly used for MINI SAS 4X rack card, and uses external MINI SAS cable to support 6Gbps bandwidth.
SAS uses SATA compatible cables for point-to-point connections to facilitate cable installation.
For large servers, the connection cable is switched before high-speed data exchange.
MINI SAS 26PIN male connector.
The outer shell is made of zinc alloy, which is strong and durable, can protect the inner core from damage, and has continuous replacement.
