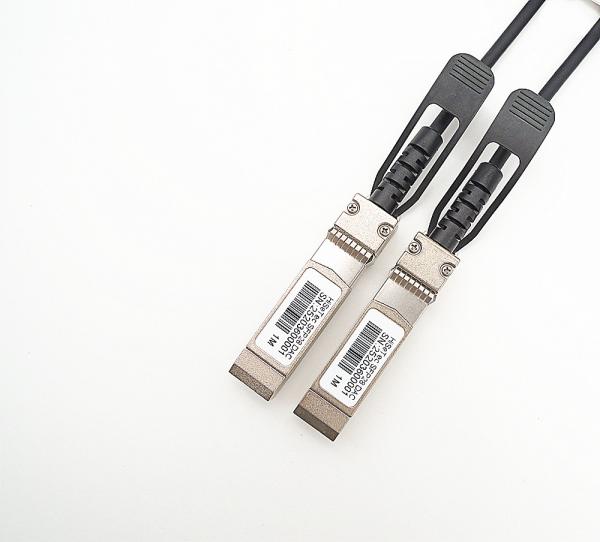

| SFP28 Direct Attach Cable, 25Gb Ethernet, Copper Passive, 1m | |
|
| Applications | | | · Switches / Routers / HBAs | | | · Server & Storage Devices | | | · Data Center Networking | | | · Enterprise storage | | | · High Performance Compute | | | · 25Gbs Ethernet | | | · Base Station / BBU / RRU |
|
|
| Product Features | |
| · Meet MSA SFF-8432 specification | |
| · Supports serials data rates up to 25Gbps | |
| · Hot pluggable | |
| · High cost effective to Fiber optics solution | |
| · Low power consumption | |
| · Enhanced EMI suppression | |
| · Differential impedance 100ohm | |
|
| SFF-8432 | |
| Series: SFP28 | |
| · Cable Length:1.0/2.0/3.0/5.0 Meters | |
| · Wire Size:26AWG, Silver plated copper, OD:4.8MM | |
| · Plating: Au 30u" | |
| · Color: Black Cable | |
| · Environmental Compliance: RoHS | |
|
| Electrical Characteristics | |
|
| . Signal Integrity | | | | . Raw Cable Impedance: 100 ohm±10% | | | . Cable Assembly Impedance: 100 ohm±15% | | . Intra-pair Skew: ﹤10ps | | | | . Maximum Insertion Loss:22.48 dB@12.8906 GHz | | . Crosstalk:≤-35 dB | |
|
| Benefits |
| . Cost-effective copper solution |
| . Lowest total system power solution |
| . Lowest total system EMI solution |
| . Optimized design for Signal Integrity |
| . Temperature Range: 0~ 70 °C |
|
| Item | 25G Passive Direct Attach Copper Cable | | Cable Type | SFP28 SFF-8432 to SFF-8432 Power Cable | | Connector 1 | SFP28 SFF-8432 connector x 1 | | Connector 2 | SFP28 SFF-8432 connector x 1 | | Conductors | Silver-plated copper, 30AWG | | Insulators | PE, natural color | | Drain Wire | SC, 30AWG | | Data transfer rate | 25Gbps | | Pin layout | Standard | | OEM | Support |
|
|
| |
| 1.【SFP CABLE】This Transceiver (SFP+) direct attach copper (DAC)
cable, also known as Twinax cable, is suitable for in-rack
connections between servers and switches, such as, Cisco, Our
cables are designed to the open-source SFF-8402 MSA standard in
order to guarantee compatibility with the vast majority of SFP28
equipment on the market also based on that standard. | | 2.【HIGH QUALITY BY TESTED】This network cable is individually tested
by standard IEEE802.3by /D3.2 on switches before delivery for
superior performance, quality, and reliability, 100% passed
Conduction Test, SI Test, Compatibility Test, EEPROM Test | | 3.【Design】25G/28G SFP28 Direct Attach Copper Cables provide
affordable 25-Gigabit Ethernet connectivity in a low-profile
package. Each SFP28 cable utilizes an upgraded 20-position
“board-as-connector” design with zinc die-cast backshells for
superior EMI performance and minimal insertion loss. |
|
