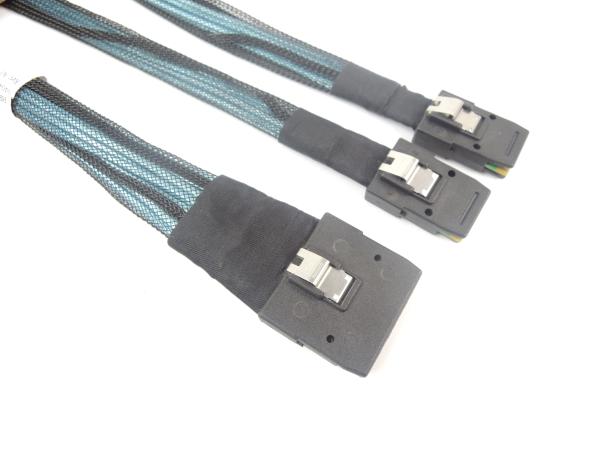

Tinned Copper 30AWG SFF 8087 Male 36Pin Internal SAS Cable

Product Categories

Contact Now

Tinned Copper 30AWG SFF 8087 Male 36Pin Internal SAS Cable

Ask Lasest Price
Brand Name :	HiSeTec
Certification :	RoHS CE
Payment Terms :	TT
Delivery Time :	5-8Week

Add to Cart

Product Details
Company Profile

Tinned Copper 30AWG SFF 8087 Male 36Pin Internal SAS Cable

Tinned Copper 30AWG SFF 8087 Male 36Pin Internal SAS Cable

MiniSAS 12G 8X 68P TO 2*36P INTERNAL COPPER CABLE SFF-8087

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

· Data/Communications

SFF-8087

Series: Mini SAS

· Cable Length:1.0 Meters

· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM

· Plating: Au 30u"

· Color: Cable Silver, Overmold Black

· Environmental Compliance: RoHS

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

Product Name	1m (3.3ft) 12G Internal MiniSAS 8X 68Pin SFF-8087 Male to 2*36Pin Mini SAS Cable
Wire AWG	30AWG
Cable Length	1m(3.3ft)
Connector Type	QSFP28
Max Data Rate	12Gbps
Protocols	SFF-8087
Color	Black

Tinned Copper 30AWG SFF 8087 Male 36Pin Internal SAS Cable

Mini Serial Attached SCSI (SAS) SFF-8087 to 36Pin Mini SAS SFF-8087 cable is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers.Data transfer speed is determined by the capabilities of the connected hardware.
Storage Expansion Tool with great quality maximize the capacity of your RAID configuration or SAN network with this tough but flexible cable that is built to withstand 24/7 use.

Product Tags:

36Pin Internal SAS Cable

30AWG Male SAS Cable

Tinned Copper SFF8087 SAS

Tinned Copper 30AWG SFF 8087 Male 36Pin Internal SAS Cable
