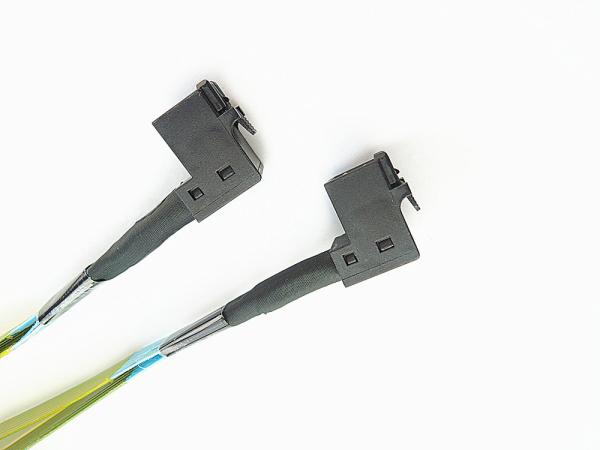

SFF 8643 36P Elbow TO Elbow 1.0 Meter 3.3ft SAS Wire

SFF 8643 36P Elbow TO Elbow 1.0 Meter 3.3ft SAS Wire

MiniSAS HD 12G 4X INTERNAL FLAT COPPER CABLE SFF-8643

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 85ohms

· Self lock design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

· Data/Communications

SFF-8643

Series: HD Mini SAS

· Cable Length:1.0 Meters

· Wire Size:30AWG, Silver-plated Copper,OD:11*0.85MM

· Plating: Au 30u"

· Color: Cable Blue, Overmold Brown

· Environmental Compliance: RoHS

Signal Integrity

. Mated Connector Impedance: 85 ohm±15%

. Cable Absolute Impedance: 85 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;

11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

Item	12G Internal HD MiniSAS 36P TO 36P elbow Cable
Cable Type	HD MiniSAS SFF-8643 to SFF-8643 Cable
Connector 1	HD MiniSAS SFF-8643 connector x 1
Connector 2	HD MiniSAS SFF-8643 connector x 1
Conductors	Silver-plated copper, 30AWG
Insulators	PE, natural color
Drain Wire	SC, 30AWG
Data transfer rate	12Gbps
Pin layout	Standard
OEM	Support

HD Mini-SAS cable configurations Internal Mini SAS SFF-8643 connector.
It is an internal Mini Serial Attached SCSI HD x4 (SFF-8643) to Mini Serial Attached SCSI HD x4 (SFF-8643) cable. It is used for connecting a SAS/SATA adapter to a SAS/SATA backplane with mini-SAS HD connectors.
The High Density (HD) system referenced as HD Mini-SAS (SFF-8643) in the SAS 2.1 standard, meets the 6Gb/s SAS specification.
These new HD Connectors will be used on the SAS 3.0 specification when it is released. Cable material may change but the connectors will be the next generation of SAS to run at 12Gb/s.
internal HD Mini-SAS Copper Cables Internal Mini SAS SFF-8643 to mini sas High Density HD SFF-8643 data Cable Length: 1M
