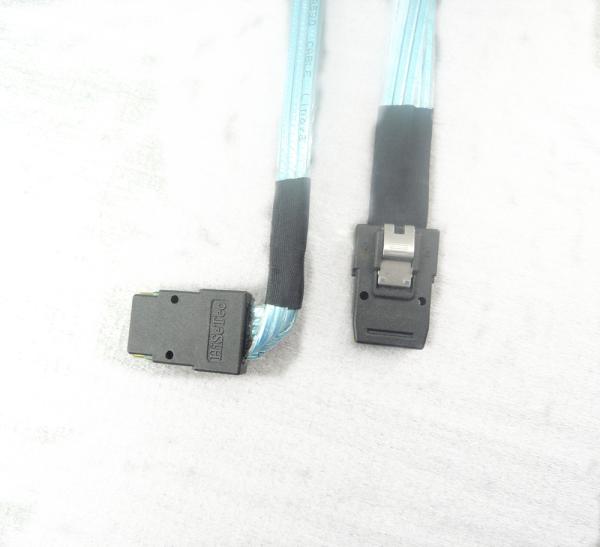

Black Self Lock Left Angle SFF8087 SAS Internal Cable

Internal Mini SAS 4X SFF-8087 to Left Angle SFF-8087 Cord, Internal Mini SAS to Mini SAS Cable, Compatible with RAID or PCI Express Controller
Product Features
· Transmission rate 12Gbps
· Meet SAS3.0 specification
· Low power
· Differential impedance 100ohms
· Self lock design
Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications
SFF-8087
Series: Mini SAS
· Cable Length:1.0 Meters
· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM
· Plating: Au 30u"
· Color: Cable Silver, Overmold Black
· Environmental Compliance: RoHS
Signal Integrity
. Mated Connector Impedance: 100 ohm±15%
. Cable Absolute Impedance: 100 ohm±10%
. Cable Pair Matching: ±5 ohm
. Common Mode Impedance: 25 to 40 ohms
. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.
. Crosstalk: -35 dB up to 6Ghz
Product Name 1m Internal Mini SAS 4X SFF-8087 to Left Angle SFF-8087 Cable Wire AWG 30AWG Cable Length 1m(3.3ft) Connector Type Mini SAS 36P SFF-8087 Max Data Rate 12Gbps Protocols SFF-8087 Color Black
Internal MiniSAS HD copper cable assembly supports users on impact, high speed SAS applications such as: Storage, severs, HPC (High performance computing), HBAs, switch etc. The product uses 8 differential pairs to provide 4 transmission channels with 12Gbps data rate each channel. The interfaces are adopted for SAS 2.1 and SAS3.0 standards. A low profile PCIe card can accommodate 4 MiniSAS HD ports versus 2MiniSAS ports.
