High Density Silver Plated Copper 0.5M Internal SAS Cable

High Density Silver Plated Copper 0.5M Internal SAS Cable

MiniSAS HD 12G 8X INTERNAL FLAT COPPER SFF-8643 TO SFF-8087 CABLE

Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 85ohms

· Self lock design

SFF-8643

Series: HD Mini SAS

· Cable Length:0.5 Meters

· Wire Size:30AWG,Silver-plated Copper,OD:11*0.85MM

· Plating: Au 30u"

· Color: Cable Blue, Overmold Brown

· Environmental Compliance: RoHS

Signal Integrity

. Mated Connector Impedance: 85 ohm±15%

. Cable Absolute Impedance: 85 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

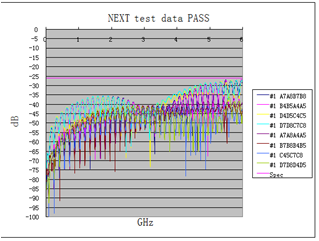

. Crosstalk: -35 dB up to 6Ghz

Item	MiniSAS HD 12G 8X INTERNAL FLAT SFF-8643 TO SFF-8087 CABLE
Cable Type	MiniSAS HD SFF-8643 to SFF-8087 Cable
Connector 1	MiniSAS HD SFF-8643 connector x 1
Connector 2	MiniSAS SFF-8087 connector x 1
Conductors	Silver-plated copper, 30AWG
Insulators	PE, natural color
Drain Wire	SC, 30AWG
Data transfer rate	12Gbps
Pin layout	Standard
OEM	Support

Internal MiniSAS HD copper cable assembly supports users on impact, high speed SAS
applications such as: Storage, severs,HPC (High performance computing), HBAs, switch etc.
he product uses 8 differential pairs to provide 4 transmission channels with 12Gbps data rate
each channel. The interfaces are adopted for SAS 2.1 and SAS3.0 standards. A low profile
PCIe card can accommodate 4 MiniSAS HD ports versus 2 MiniSAS ports.
