Internal Copper 12G 8X Mini SAS SFF 8643 TO SFF 8643 Cable

Internal Copper 12G 8X Mini SAS SFF 8643 TO SFF 8643 Cable

MiniSAS HD 12G 8X INTERNAL COPPER CABLE SFF-8643

Product Features

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

· Data/Communications

SFF-8643

Series: HD Mini SAS

· Cable Length:1.0 Meters

· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM

· Plating: Au 30u"

· Color: Cable Silver, Overmold Black

· Environmental Compliance: RoHS

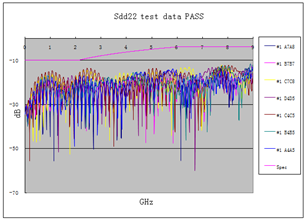

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

Item	12G HD MINI SAS 72P Straight TO 72P Elbow Cable
Cable Type	HD MINI SAS SFF-8643 TO SFF-8643 Cable
Connector 1	HD MINI SAS SFF-8643 connector x 1
Connector 2	HD MINI SAS SFF-8643 connector x 1
Conductors	Tinned copper, 30AWG
Insulators	PE, natural color
Drain Wire	TC, 30AWG
Data transfer rate	12Gbps
Pin layout	Standard
OEM	Support

Internal MiniSAS HD copper cable assembly supports users on impact, high speed SAS

applications such as: Storage, severs,HPC (High performance computing), HBAs, switch etc.

he product uses 8 differential pairs to provide 4 transmission channels with 12Gbps data rate

each channel. The interfaces are adopted for SAS 2.1 and SAS3.0 standards. A low profile

PCIe card can accommodate 4 MiniSAS HD ports versus 2 MiniSAS ports.
