HD 12G 4X Copper SFF 8643 36P STR Internal SAS Cable

MiniSAS HD 12G 4X SFF-8643 INTERNAL COPPER CABLE

Signal Integrity
. Mated Connector Impedance: 100 ohm±15%
. Cable Absolute Impedance: 100 ohm±10%
. Cable Pair Matching: ±5 ohm
. Common Mode Impedance: 25 to 40 ohms
. Insertion loss: -6dB maximum up to 4.5Ghz;
11dB maximum up to 9Ghz.
. Crosstalk: -35 dB up to 6Ghz

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

· Data/Communications

SFF-8643

Series: HD Mini SAS

· Cable Length:1.0 Meters

· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM

· Plating: Au 30u"

· Color: Cable Silver, Overmold Black

· Environmental Compliance: RoHS

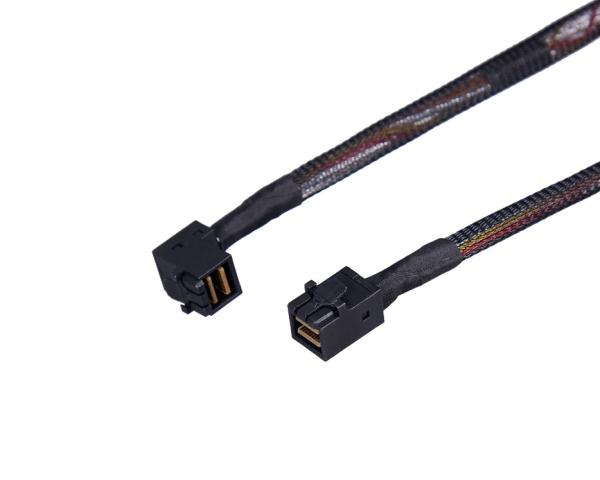

Mini SAS HD 12G 4X INTERNAL COPPER CABLE(SFF-8643) 36P STR TO 36P Elbow
Product Description	SAS SFF-8643
Connector	Internal HD Mini SAS (SFF-8643)
Cable Length	1M
Signal Wire Size	30AWG, Tinned Copper
Impedance	100 OHM
Plating	Au 30u'
Cable Color	Black
Applications	servers,Storage rack,Workstations

HD Mini-SAS cable configurations Internal Mini SAS SFF-8643 connector
It is an internal Mini Serial Attached SCSI HD x4 (SFF-8643) to Mini Serial Attached SCSI HD x4 (SFF-8643) cable. It is used for connecting a SAS/SATA adapter to a SAS/SATA backplane with mini-SAS HD connectors.
The High Density (HD) system referenced as HD Mini-SAS (SFF-8643) in the SAS 2.1 standard, meets the 6Gb/s SAS specification.
These new HD Connectors will be used on the SAS 3.0 specification when it is released. Cable material may change but the connectors will be the next generation of SAS to run at 12Gb/s.
internal HD Mini-SAS Copper Cables Internal Mini SAS SFF-8643 to mini sas High Density HD SFF-8643 data Cable Length: 100cm
