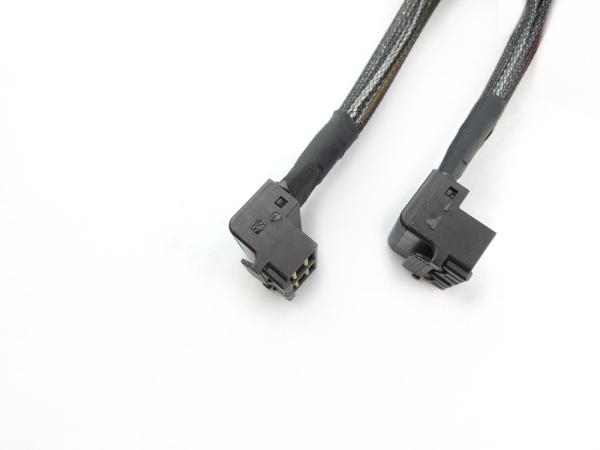

30AWG Elbow 0.5 Meter 1.6ft Serial Attached Scsi Cable

Ask Lasest Price
Brand Name :	HiSeTec
Certification :	RoHS CE
Delivery Time :	5-8Week
Payment Terms :	TT

Add to Cart

Product Details
Company Profile

30AWG Elbow 0.5 Meter 1.6ft Serial Attached Scsi Cable

30AWG Elbow 0.5 Meter 1.6ft Serial Attached Scsi Cable

MiniSAS HD 12G 8X INTERNAL COPPER CABLE SFF-8643

Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications

Product Features

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

SFF-8643

Series: HD Mini SAS

· Cable Length:0.5 Meters

· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM

· Plating: Au 30u"

· Color: Cable Silver, Overmold Black

· Environmental Compliance: RoHS

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;

11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

Mini SAS HD 12G 72P TO 72P Elbow Cable
Product Description	SAS SFF-8643
Connector	Internal HD MiniSAS (SFF-8643)
Cable Length	0.5M
Signal Wire Size	30AWG, Tinned Copper
Impedance	100 OHM
Plating	Au 30u'
Cable Color	Black
Applications	servers,Storage rack,Workstations

Internal MiniSAS HD copper cable assembly supports users on impact, high speed SAS
applications such as: Storage, severs,HPC (High performance computing), HBAs, switch etc.
he product uses 8 differential pairs to provide 4 transmission channels with 12Gbps data rate
each channel. The interfaces are adopted for SAS 2.1 and SAS3.0 standards. A low profile
PCIe card can accommodate 4 MiniSAS HD ports versus 2 MiniSAS ports.
